> MAS403-BT Tool Holder

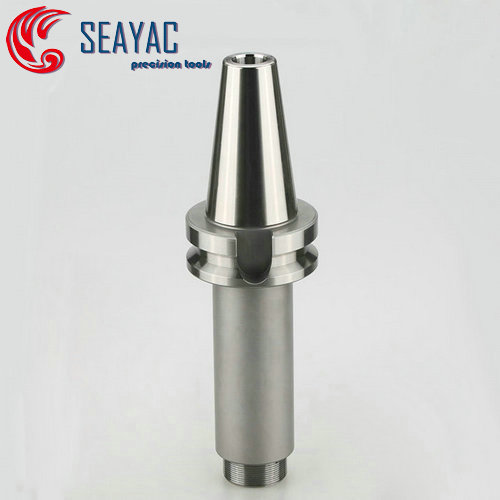

BT50 Tool Adaptor
- Standard:MAS403/BT
- Material:20CrMnTi
- -185° long cryogenic treatment

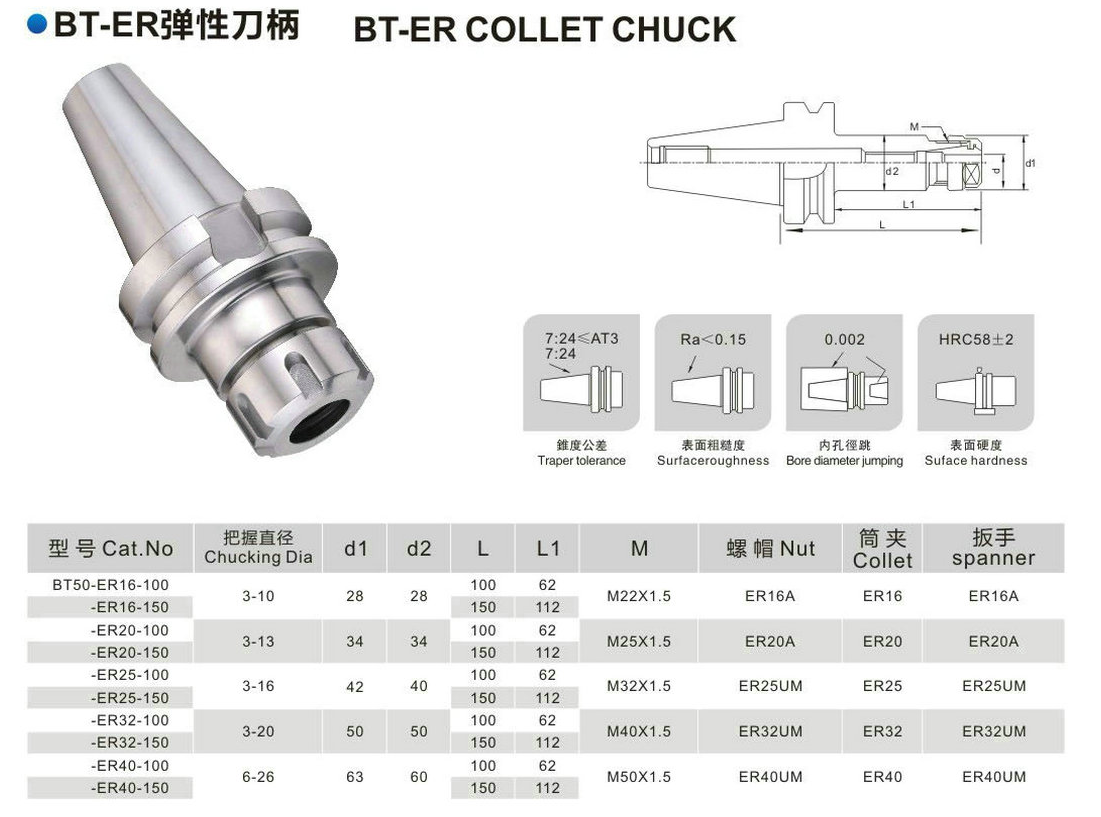

- Product description: BT50-ER40-150 Ra<0.15 7:24≤AT3 Hardness:HRC56-60°
Product introduction
USE:
For clamping tools with cylindrical shank in Collets according to DIN 6499
FEATURE:
process machine : CNC Turing center
-Run out between cone and holing part<0.005mm
-Fine balancing can be customed on demand (12000rpm/G6.3, 25000rmp/G2.5)
-With through hole for internal and flange coolant (AD/B) design can be customed on demand
PREVIOUS：BT50-Er Collet Chuck
NEXT：GSK High Speed Precision Collet Chuck
