SLA Side Lock End Mill ToolHolder

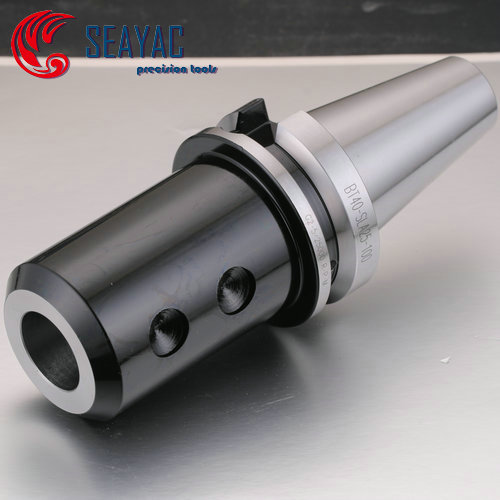

BT40-SLA25-100 Side Lock Toolholder

Comprehensive
features of CNC Chucks
Materia1:20CrMnTi;
Hardness:58士2HRC;

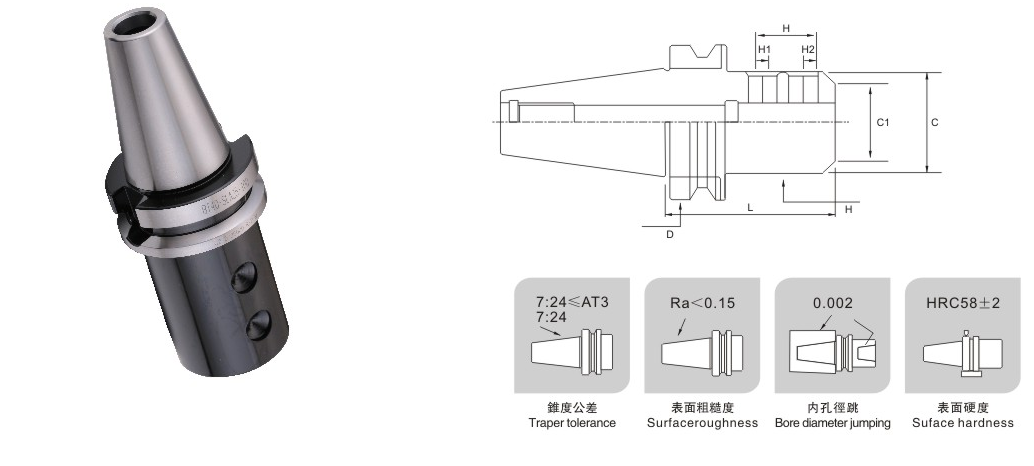

7:24 Tapper tolerance≤AT3;
Carbon depth>0.8;
Surface roughness:Ra<0.4u;
Provide 2 kinds appearance;Sand一blasting and Electroless plating process;
Sub-zero treatment:
All of the CNC chucks are processed long time
sub-zero treatment(-180℃,mare than 20 hours) Make the residual austenite into martensite and precipitate of nano-sized carbide particLes,enhance chucks hardness.
toughness durability,and reduce the residual internal stress.
Thermal aging treatment:
Long time thermal aging treatment can get rid of the residual
interna stress in grinding process.

 激光标识

在刀具上精确可视标记不平衡位盖

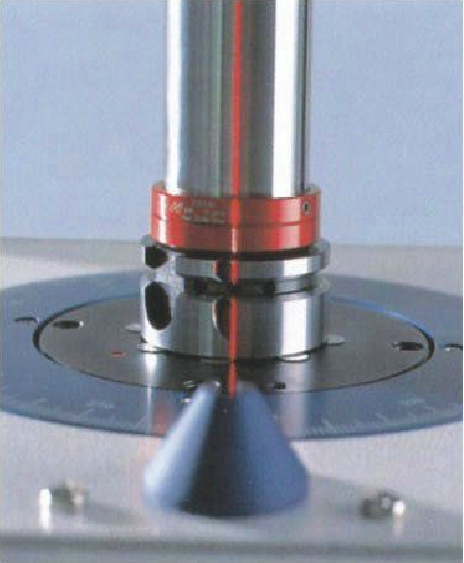

Laser marking

exact optical marking of the

unbalance positions on the tool

预调

测量系统具有高分辨率摄像

机且可进行数字图像处理

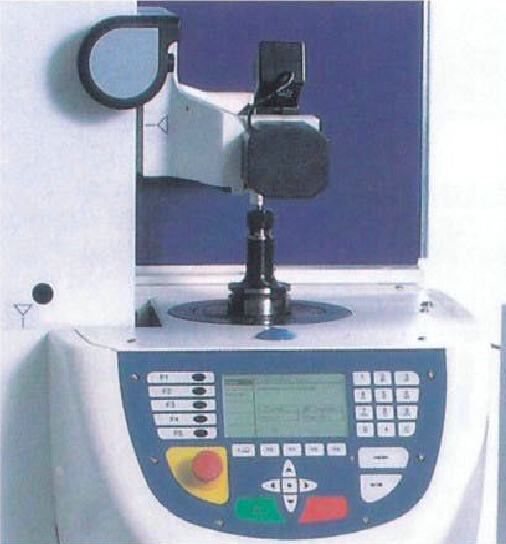

Presetting

Measuring system with high

resolution camera and digital

photo processing
