> ER Collet

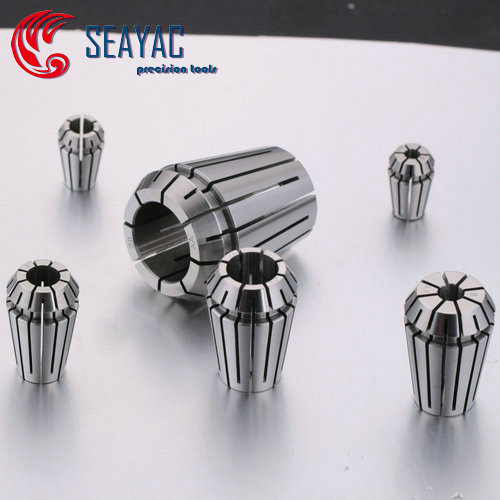

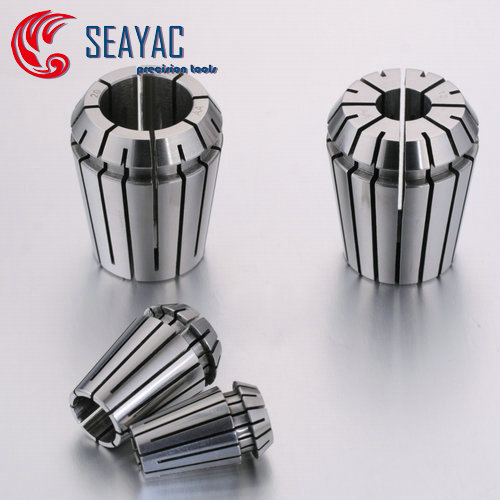

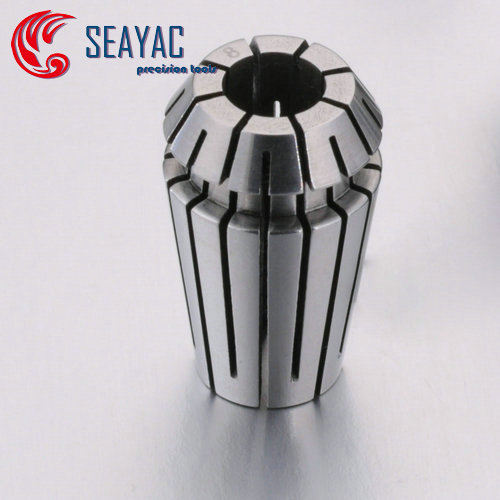

High Precision DIN6499B ER Collet
- Material:SUJ2
- T.I.R.0.008mm
- HRC44-48
- Product description: ER collet; Made of SUJ2; Run out:0.008mm; ER11, ER16, ER20, ER25, ER32, ER40
Product introduction
High Precision DIN6499B ER Collet
Features:
1.Runout：0.008mm

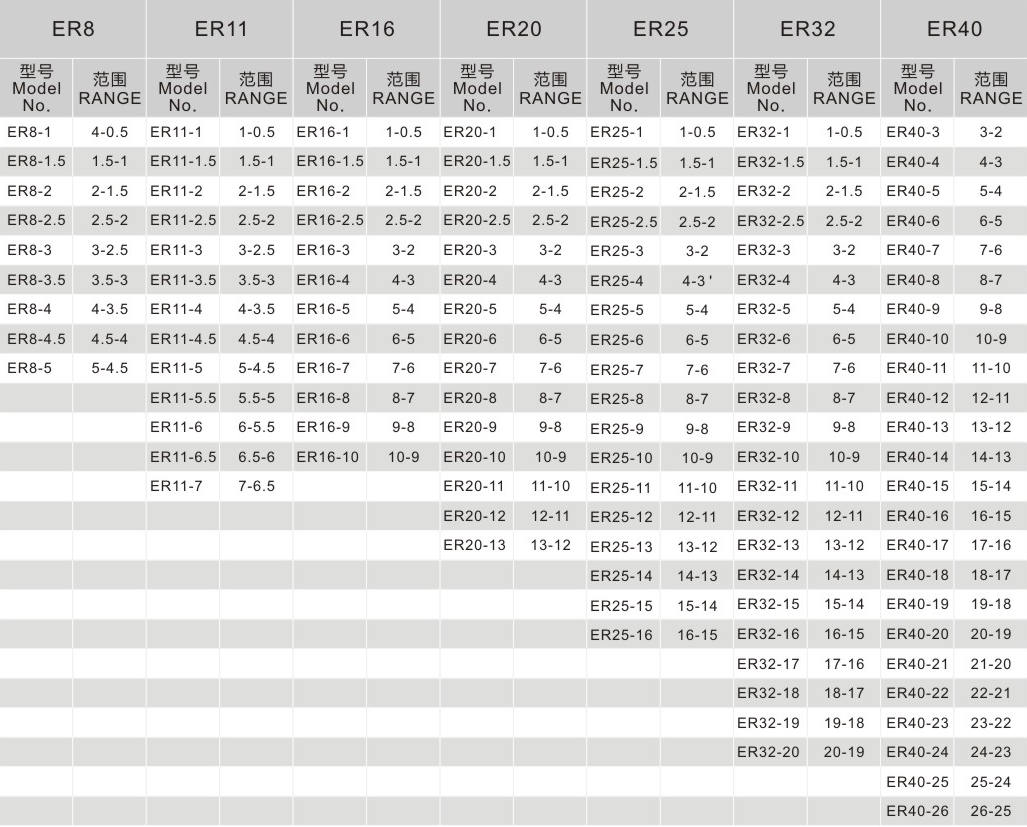

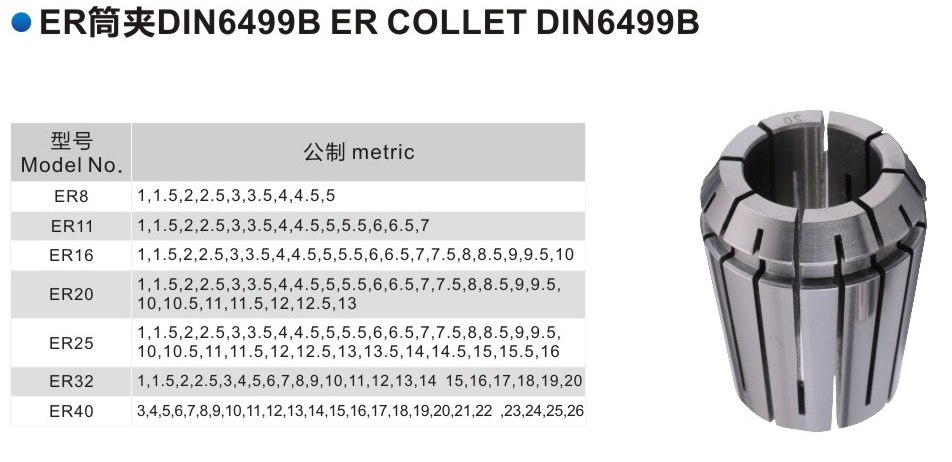

2.ER11, ER16, ER20, ER25, ER32, ER40
3.Made of high quality steel:SUJ2
4.Clamping range from 3.0mm(0.1181'') up to 26mm(1.0236'')
5.Vacuum carburizing heat.
6.Four kinds of accuracy:0.015mm,0.01mm,0.008mm,The highest accuracy is 0.005mm.

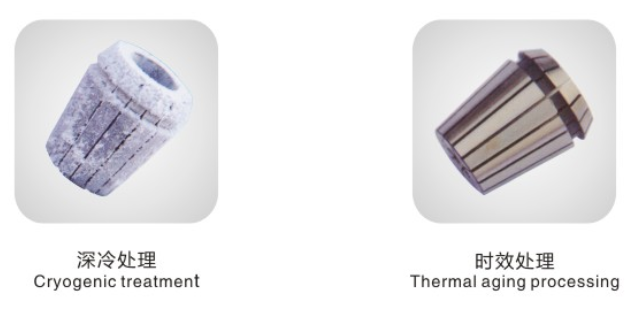

8.-185°long Cryogenic treatment；
